RESERVOIR TRUSS ADAPTER

RESERVOIR TRUSS ADAPTER

Regular price $315.00 USD
Regular price Sale price $315.00 USD
Sale Sold out
Shipping calculated at checkout.

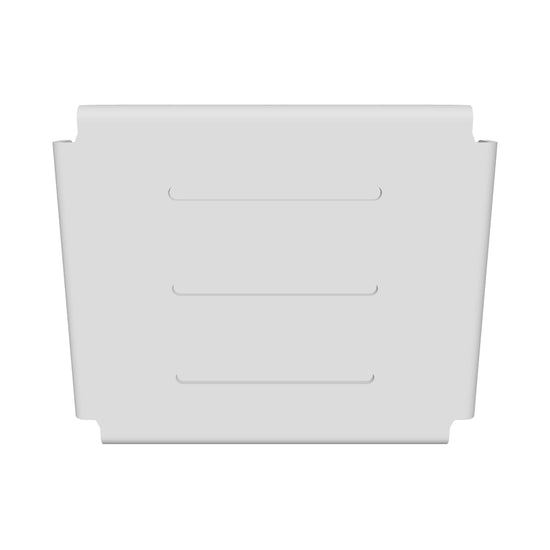

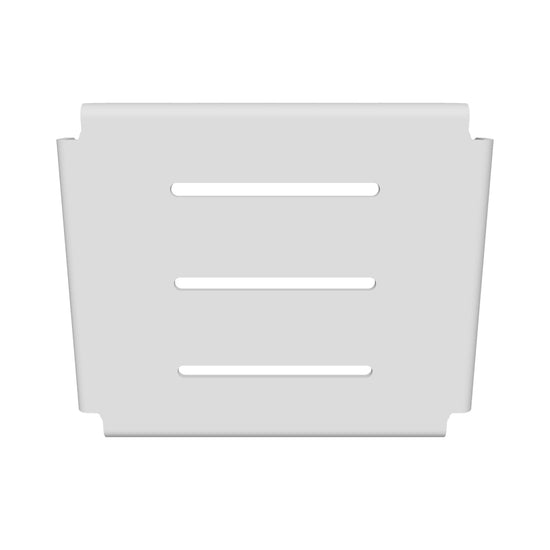

This lightweight and durable reservoir truss adapter, made from 1/4" solid aluminum alloy, allows for secure attachment to piping or truss and facilitates placement of the reservoir near effect machines in the air.

Main Features:

  • Four side slots for strap-based mount security
  • Three 10mm bottom slits for clamp attachment
  • Two side 10mm holes for safety cable attachment
  • Optional powder-coated paint for $60 extra

What's included:

  • x1 truss adapter
  • x2 utility polyester cam buckle endless loop straps, 3/4" wide
  • x1 neoprene mat, 12in x 10in, 1/8" thick

ALL ORDERS ARE CUSTOM MADE AND PROCESSING TIMES VARY PER ORDER. THIS ITEM IS NOT ELIGIBLE FOR RETURNS. PLEASE READ THE RETURN/REFUND POLICY AND WARRANTY POLICY BEFORE PURCHASING.

WARNING: This product may expose you to chemicals known to the State of California to cause cancer. For more information, see the product's safety data sheet

Materials

Aluminum Alloy 5052 H32, Neoprene, Polyester

Specifications

MOUNTING PLATE:
Tensile Strength (Ultimate): 34 ksi
Tensile Strength (Yield): 26 ksi
Shear Strength: 20 ksi
Shear Modulus: 3700 ksi
Fatigue Strength: 17 ksi
Brinell Hardness: 60 kgf / mm^2
Elongation at Break: 12%
Elastic Modulus: 9900 ksi
Poisson's Ratio: 0.33

STRAP:
Breaking Point: 2598 lbs
Melting Point: 500º F

Dimensions

13.443" L x 11.193" W x 2.281" H
5lbs
